mightyTIMER WIFI Duo

mightyTIMER WiFi Duo

Smart Astronomic Scheduling

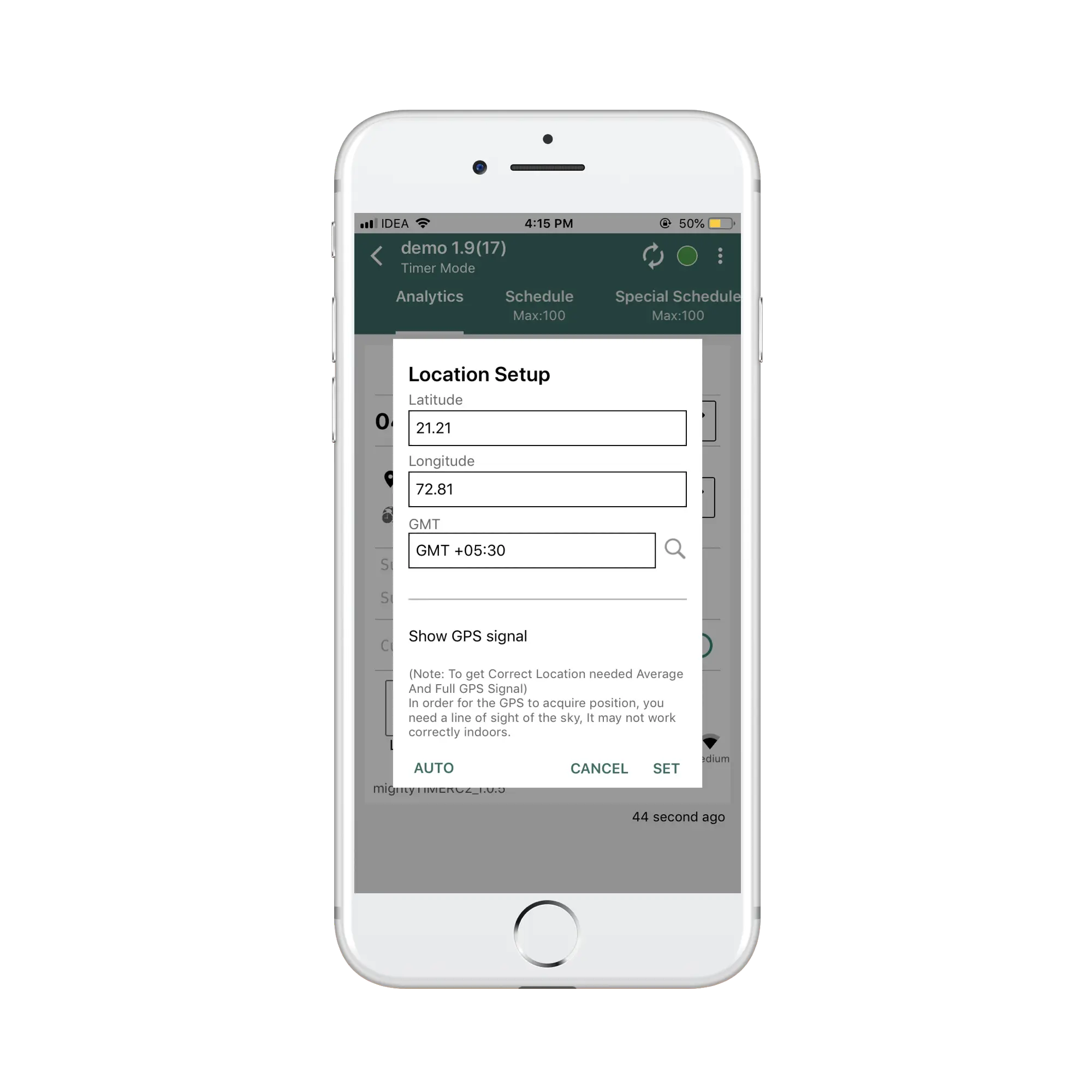

Auto Lat./Long. detect using Smartphone GPS. Auto sunrise/sunset programming for all seasons

Automatic Switch-over.

mightyTIMER switches from Manual Mode to Auto (Schedule) Mode automatically

All-in-One Timer!

Multi-functional Timer with 9 Modes of Operations.

Easiest Configuration using Smart App.

Available Free on Android/IOS

2 Relay for Energy Saving!

Configure lights for alternate switching; to save energy!

IoT based Remote Access.

Connect mightyTIMER to Internet & Control from Anywhere!

Energy Meter / Current Sensor Interface.

Connect them for Analytics & Fault Detection Alerts.

Modes of Operation

mightyTIMER WiFi Duo is stacked with 9 modes of operation.

It can Switch ON/OFF load connected to it using:

FIXED TIME SCHEDULER

As per Real-Time Clock (RTC), set Time schedule configured via Smartphone App

SMART MODE

Combination of Fixed Time Scheduler and Astronomic Time Scheduler

SPECIAL DATE SCHEDULER

Schedule mightyTIMER WiFi Duo for occasion with specific Date of the year

REMOTE ACCESS

Control mightyTIMER WiFi Duo using App via WiFi Internet

IMPULSE MODE

Generate pre-set duration pulse output based on RTC Schedule

MANUAL SWITCH

Switch ON/OFF load connected to it using manual switch

ASTRONOMIC TIME SCHEDULER

As per astronomical time of Sunrise/Sunset based on latitude/longitude set via Smartphone App

COUNTDOWN TIMER

Schedule switch ON/OFF after a pre-set time period. Manually triggered by physical switch &/or App.

CYCLIC TIMER

Schedule to switch channels ON/OFF at preset times over a period, then repeat the cycle. During Cyclic Timer Mode, Physical Switch &/or App based Manual ON/OFF is not possible.

Connectivity Modes

Using WiFi protocol, there are 4 connectivity modes for mightyTIMER Control & Configuration.

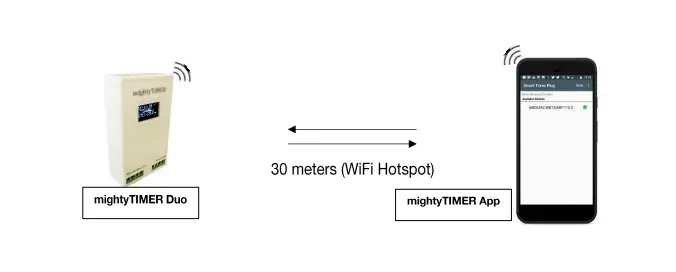

Direct Connectivity: WiFi Hotspot (Range: ~30 meters)

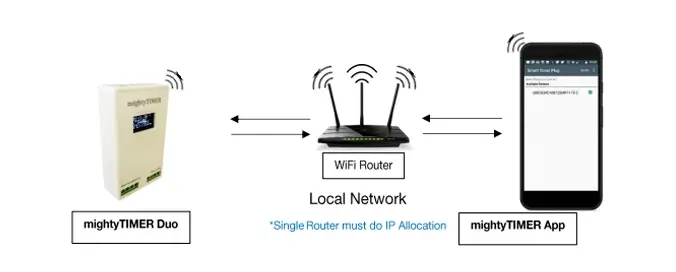

WiFi Intranet (Range: Local Network)

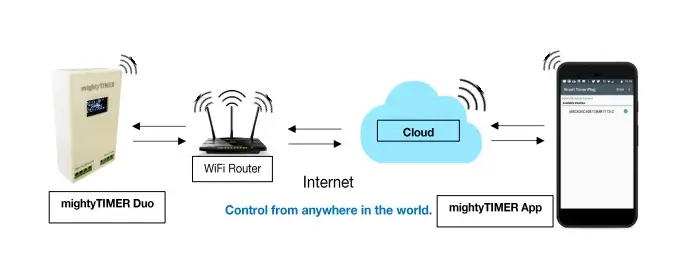

WiFi Internet (Range: Internet – Control from Anywhere in the world)

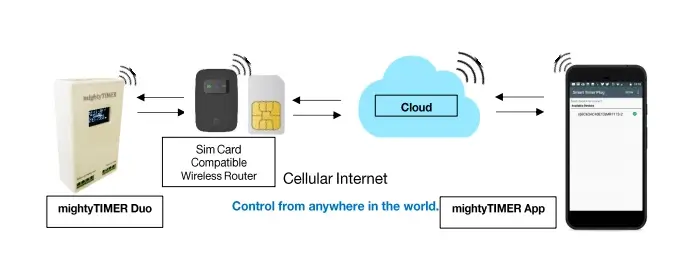

SIM Card Internet Hotspot (Range: Internet – Control from Anywhere in the world)

Technical Specifications

Product CodeMTWD1CHSN Code8542Product NameWiFi Duo-1CProduct TypeMulti-Functional Wi-Fi IoT Astronomical Time SwitchDisplayOLEDDisplay Resolution128 x 64Module Dimensions (in mm)100 x 56 x 25Colour WhiteOutput Channels2 ChannelRated operational rangeAC: 230 V / 110 V AC (50/60 Hz) DC: 24 V to 200 V DCOperating Temperature-25 °C to +70 °CContact Rating 5 A *For higher load operation, use suitable contactorPhase1 Ф *Compatible with 3 Ф using suitable contactorOperation Modes1. Fixed Time Scheduler 2. Astronomic Time Scheduler (Sunrise / Sunset Time) 3. Smart Mode 4. Special Date & Time Scheduler 5. Countdown Timer 6. Cyclic Time 7. Impulse Mode 8. Remote Access 9. Manual SwitchInstallationBase (Direct In-Series) / DIN RailRTC TypeTCXOBattery Reserve for RTC10 Years (Approx.) (Battery Type: Lithium)ConnectivityWiFi (Hotspot, Local Network (Intranet) & Internet)WiFi ProtocolIEEE 802.11 b/g/nConfiguration & ControlApp – Android, iOSNo. of Time Based Schedules 100No. of Special Schedules (Date Based)100Count of Available Schedule & Event History400SensorYes, Current Sensor / Energy Meter (*To be purchased extra, Not included with mightyTIMER WiFi Duo)Sensor Capacity As per Current Sensor / Energy Meter TypeProtectionsOver Voltage, Under Voltage, Over Current, Under Current, Short Circuit (*Current Sensor/Energy Meter is required)Package Contents1x mightyTIMER WiFi Duo-1C, Product ManualsWarranty 12 Months repair/replacement warranty against manufacturing defects

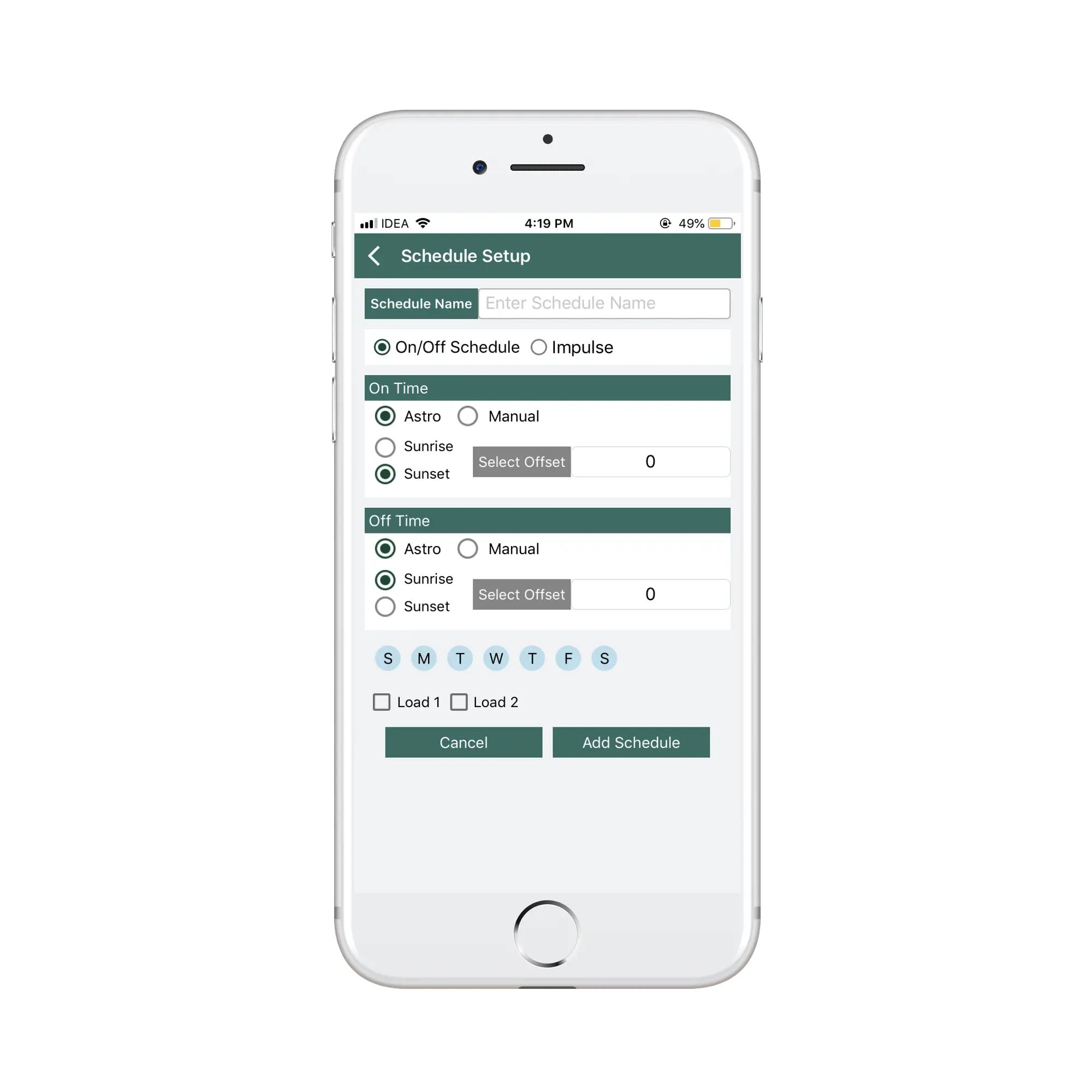

The Configuration App

Simple. Intuitive. Configuration App.

mightyTIMER WiFi Duo’s Configuration App is a simple setup tool for all electricians & industrial engineers to schedule, program & control time based applications using mightyTIMER WiFi Duo.

You can even configure a special schedule on a particular date with mightyTIMER WiFi Duo.

Just 3 steps to configure mightyTIMER WiFi Duo:

1. Connect with mightyTIMER WiFi Duo

2. Set your preferences (Example: Set fixed time Schedules or let timer depend on sunrise/sunset time of location (Astro Mode))

3. Save your preferences

Set it & Forget it!

Forget hassles of changing schedules in every season. Yes, that’s smart!

All data of schedules saved in mightyTIMER WiFi Duo (hardware)

By Connecting the mightyTIMER WiFi Duo with WiFi Internet, control and monitor mightyTIMER WiFi Duo from anywhere using App over internet.

Device Sharing - Share Device with your colleagues, engineers, teams, friends or family just by adding their Mobile number

Download mightyTIMER WiFi Duo Configuration App for Android / iOS

mightyTIMER WiFi Duo - Features

Feedback Display:

OLED Display for information of mightyTIMER WiFi Duo Operation.

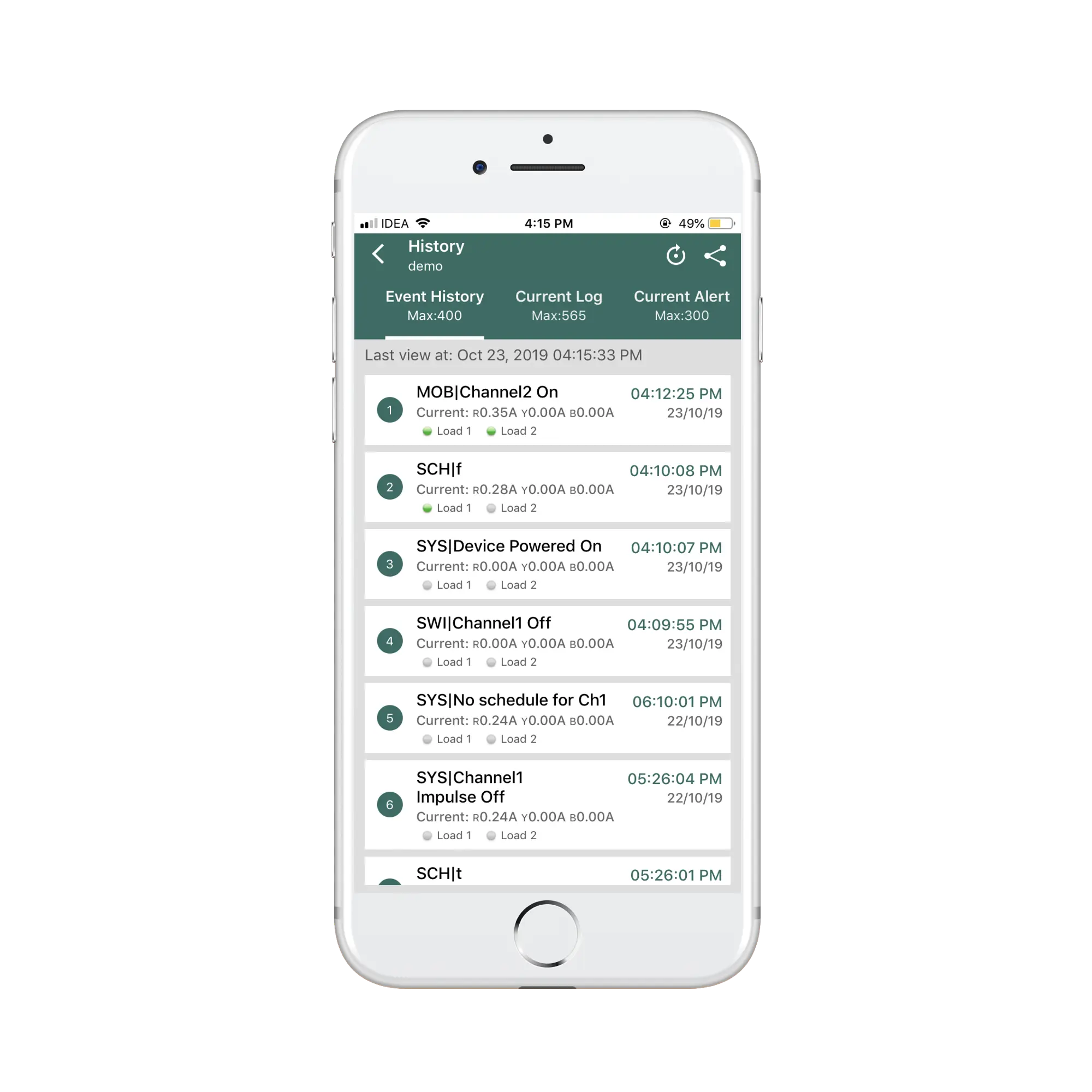

Events History:

Check upto 400 Events history in App; with history sharing facility.

RTC:

Most accurate timing by RTC (Real-Time Clock); with 10 Years reserved battery life.

Smart Schedule:

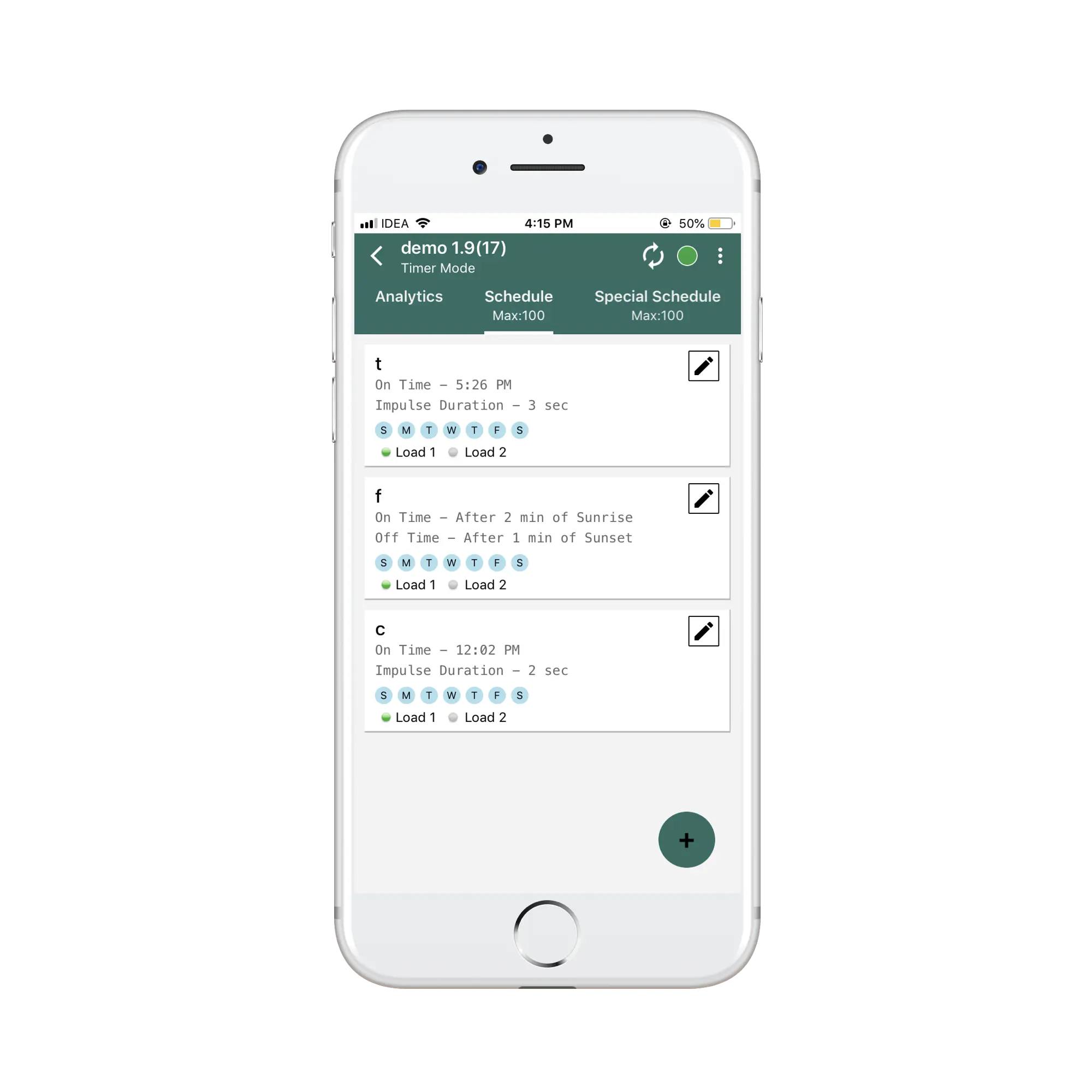

Program daily / weekly repeating schedules or program specific date of the year schedule.

Retrofit:

Fits in existing system – Plug and Play! Manual switching operation (using physical switch) remains unchanged.

Astronomic Offset:

Energy Savings using Smart offset feature (e.g: Turn OFF streetlights before 12 minutes of Sunrise Time due to natural light available)

2-Channel Configuration:

Individual (separate) Channel Programming is possible. mightyTIMER WiFi Duo can also be used as a single channel timer.

Analytics:

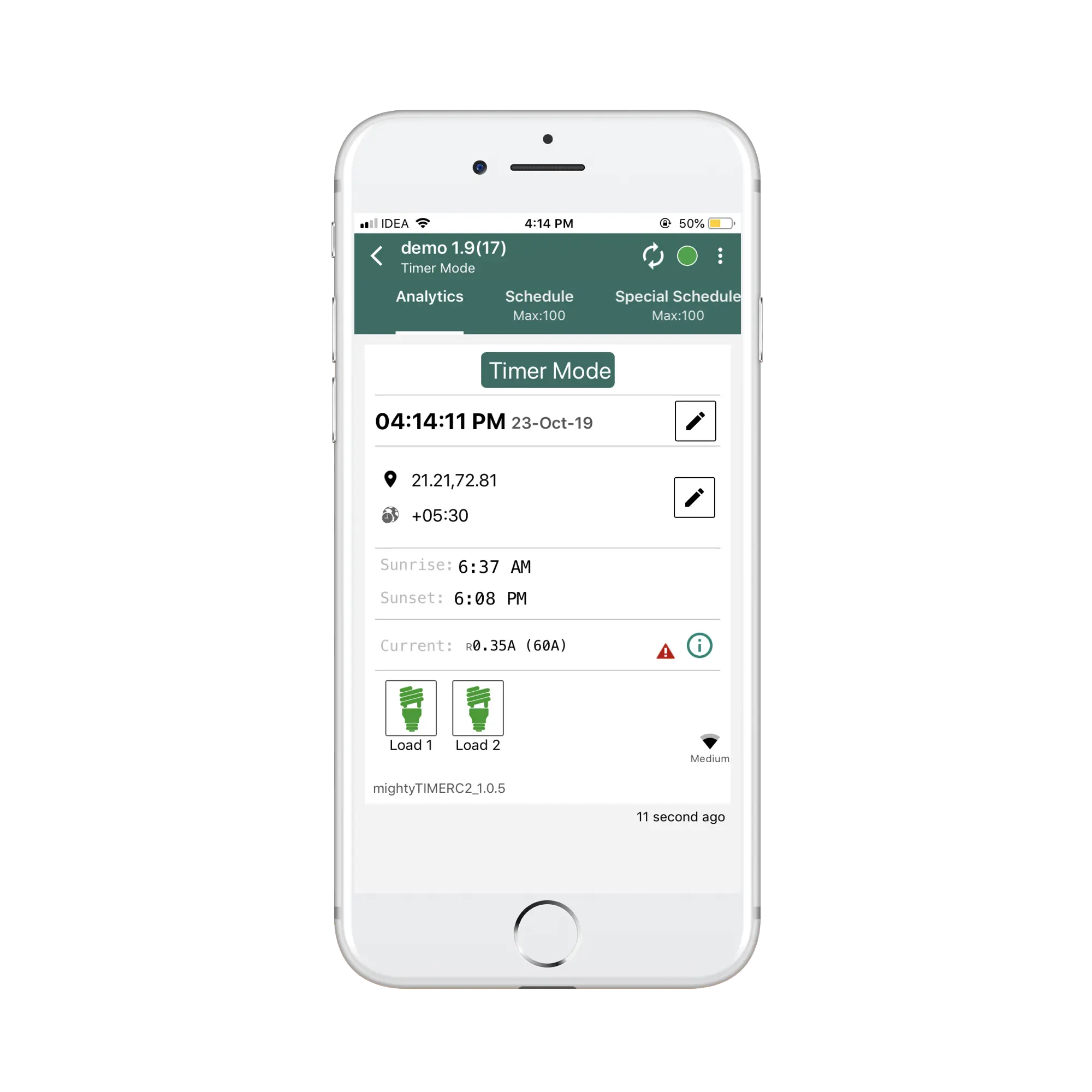

Live system analytics in App like load status, sunrise/sunset timings, voltage/current parameters, etc.

Remote Access:

Control or configure mightyTIMER WiFi Duo remotely using App through WiFi (Local Network/Internet). Thus, not required to touch mightyTIMER WiFi Duo physically, ensuring human safety.

Alerts & Notifications:

By externally connecting Current Sensor, you can set thresholds for alerts to detect fault in loads (streetlights, machineries, etc.) and get instant push notifications in App of any incidents.

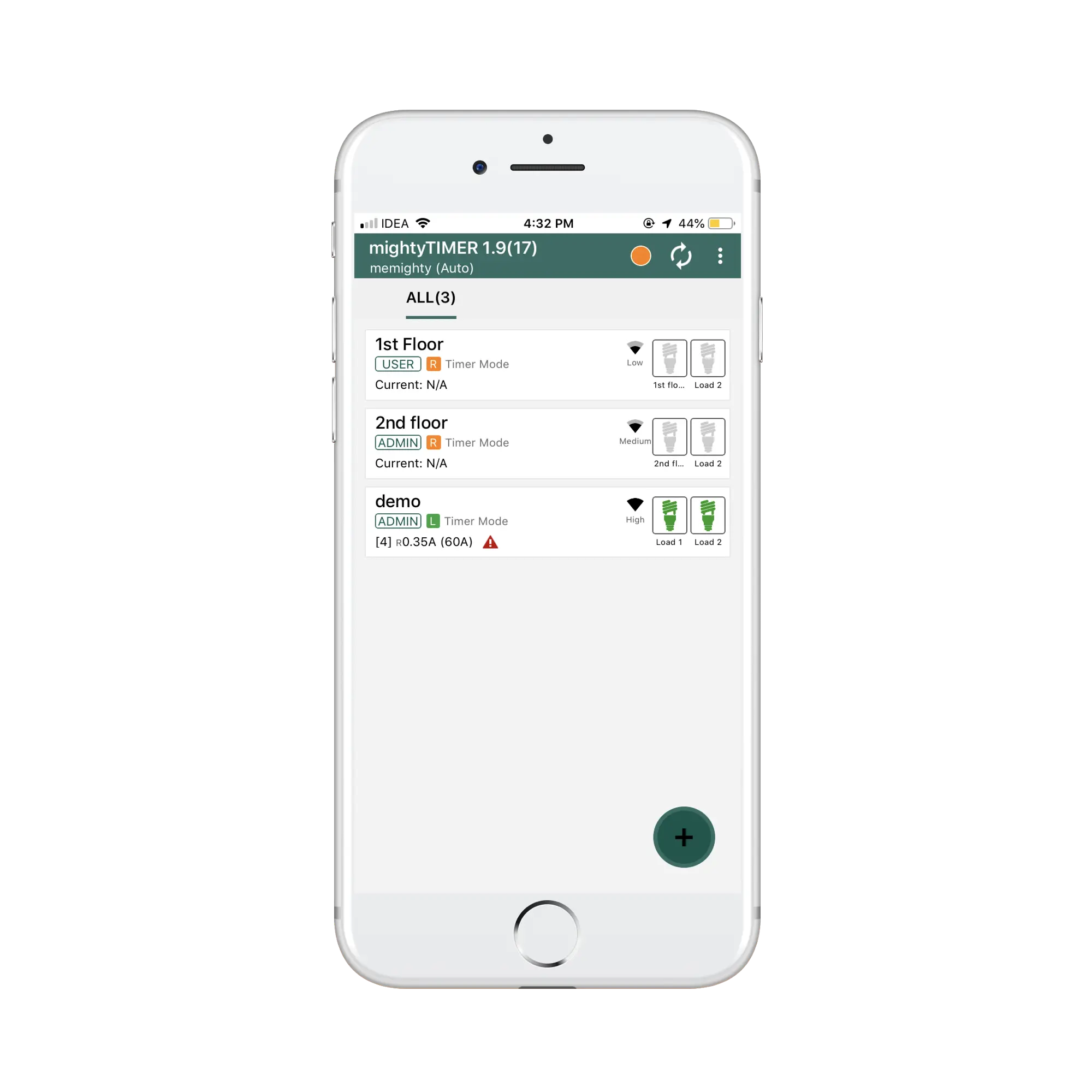

All your mightyTIMER WiFi Duos in Single App:

Get status of all mightyTIMER WiFi Duos you own and have shared access to; in single App and single login.

Server Back-up:

All your settings and configurations are saved securely on Server for hassle-free access to your data anytime, anywhere!

OTA Update:

Advanced Hardware Design enables Over-The-Air Firmware update & programming.

Grouping of mightyTIMER WiFi Duo:

Create list of mightyTIMER WiFi Duo(s) by creating a group, for efficient management of multiple mightyTIMER WiFi Duo(s)

Energy Meter Interface:

Connect accessory of Energy meter with mightyTIMER WiFi Duo to monitor energy consumption through loads / lights for smart management. Get data of Voltage (V), Current (A), Power (kWh) and Power Factor (Ф).

Device Access:

OTP based mightyTIMER WiFi Duo Login. Admin can allow or restrict access to another user by simply adding or removing their phone number. Multiple users (with access permission) can control / configure mightyTIMER WiFi Duo.

Geo-Tagging of mightyTIMER WiFi Duo on Map:

For large industries / municipalities / building societies, efficiently manage location of each mightyTIMER WiFi Duo by Geo-tagging on Map using Smartphone App.

Smart Programmable Logic Controller:

Customize schedules and use various modes for setting your own logic for automation of any machine, lights or equipment, etc.

AIN Configuration:

AIN refers to Automatic Identification of Devices in Network. It is a revolutionary integration feature invented by MEMIGHTY for users to integrate mightyTIMER WiFi Duo device(s) easily with their network. One touch configuration to identify WiFi IP & Port Addresses which can be done by any user without any need of technical / network programming.

How we are different from available timers?

Easiest Configuration by Smartphone App

10 Years Reserved Battery for RTC

Remote Access

Automatic capture of latitude/longitude for astronomical timings (sunset/sunrise time) through Smartphone GPS location. No seasonal schedule changes required.

Multi-functional (All-In-One Timer)

Energy Efficiency: Program alternate switching zones of Lighting / Air Conditioners, etc. by multi-channel programming of mightyTIMER WiFi Duo

Existing switches works as it is

Get Current Sensor / Energy Meter Alerts*

Automatic Manual to Auto (schedule) Mode switch-over.

Applications

mightyTIMER WiFi Duo finds its applications in wide range, from automating outdoor lighting to standalone automation of specific lights, appliances & machineries; mightyTIMER WiFi Duo is fit for any segment – Domestic, Commercial, Industrial, etc.

“Let your imagination soar with All-In-One Time Switch – mightyTIMER WiFi Duo”

STREET LIGHTING

ADVERTISING HOARDINGS

BUILDING LIGHTING AUTOMATION

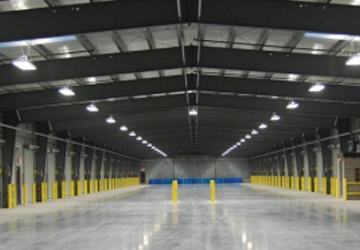

INDUSTRY LIGHTING

STAIRCASE LIGHTING

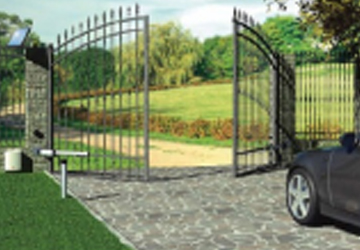

MOTORIZED GATE AUTOMATION (DRY CONTACT MOTOR)

POOJA ROOMSTEMPLE

WATER HEATERS/GEYSERS

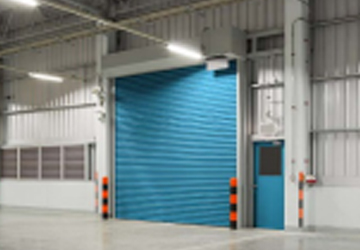

MOTORIZED SHUTTER AUTOMATION (DRY CONTACT MOTOR)

MACHINERY(3D PRINTERS, TEXTILE MACHINERY, AIR CONDITIONERS, ETC.)

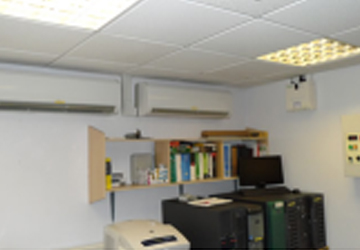

SERVER ROOMS (AIR CONDITIONER CYCLIC SWITCHING)

WATER MOTOR PUMPS

DECORATION OR OCCASIONAL LIGHTING

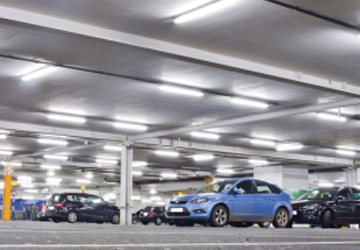

PARKING LIGHTING

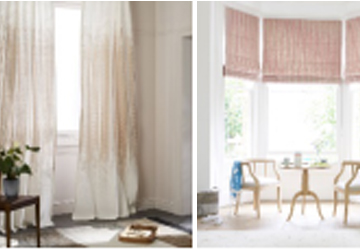

MOTORIZED CURTAIN / BLINDS AUTOMATION (DRY CONTACT MOTOR)

HOME AUTOMATION

HIGH MAST

Case Studies

mightyTIMER WiFi Duo is best deployed in standalone small, medium or large scale outdoor lighting applications. It can be programmed for zone based lighting control. Please go through the following examples for understanding concept of energy efficiency and energy saving using mightyTIMER WiFi Duo product.
